Closed Cell Polyurethane Insulation Core Applied to Freezing Water Pipes

Heavy duty insulation pipes are made of rigid and flexible pipe insulation for high loads and risers. The heavy-duty insulation pipe is made of closed-cell PUR foam with M8/M10 and ?" triple thread. The two-screw version can be optimally adjusted to the o

資料下載

Product Description

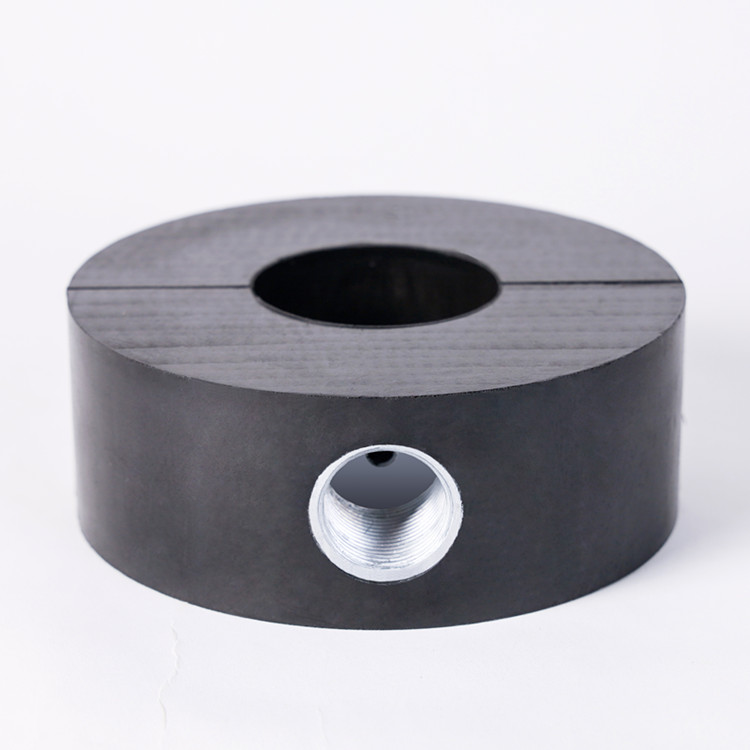

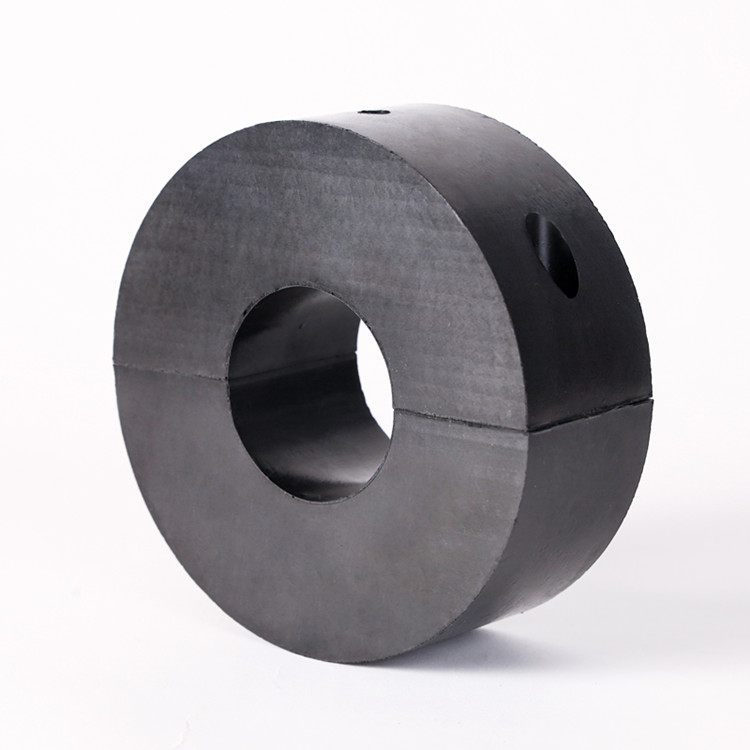

Heavy duty insulation pipes are made of rigid and flexible pipe insulation for high loads and risers. The heavy duty insulation pipe is made of closed cell PUR foam with M8/M10 and ?" triple thread. The two-screw version can be optimally adjusted to the outside diameter of the pipe. Together with the triple connection thread, this increases flexibility. The glued rubber cover makes the installation process easier. This allows refrigeration and air conditioning technology pipes with an outside diameter of 12 to 219 mm and an insulation thickness of up to 30 mm to be securely fixed to the inner rod or stud screw by means of a thread, and the age-resistant insulation material ensures the ideal function of the insulated pipe clamps.


Product Features

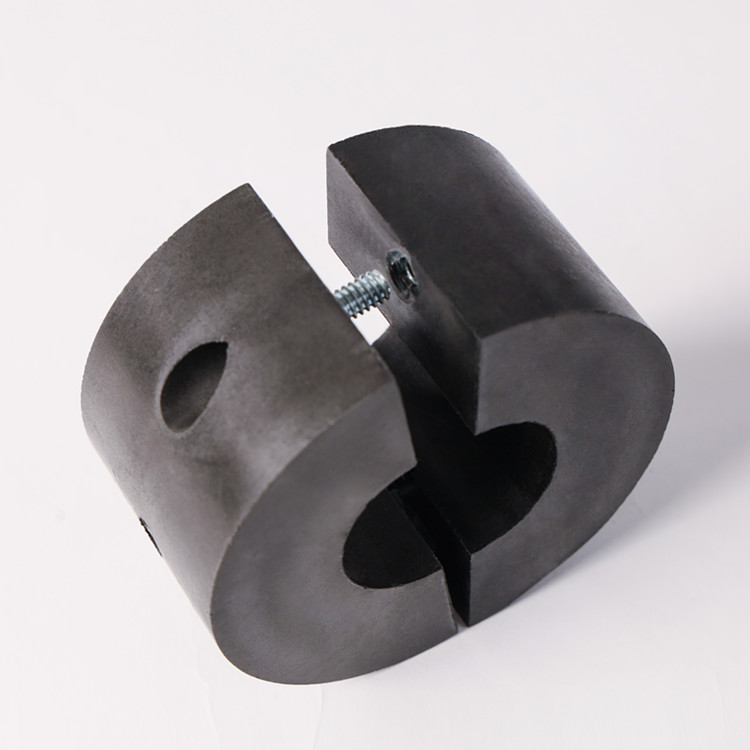

1. Split design for easy installation

2. Prevent damage to the pipe due to condensation in use

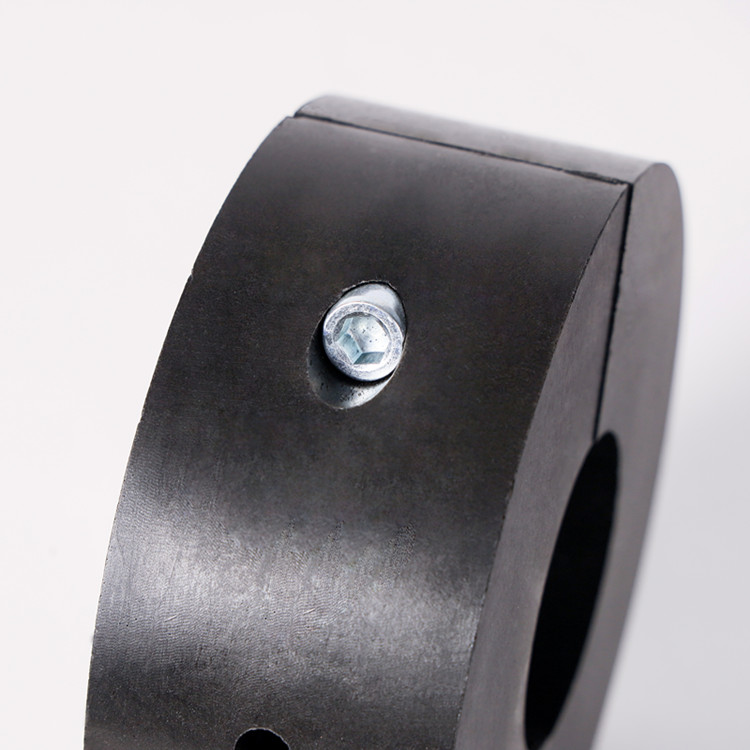

3. The fastening bolt has anti-dislodging measures, and the built-in iron ring has strong bearing capacity

4. Smooth surface of pipe support, precise and tight combination with pipe surface

5. Low thermal conductivity of pipe support, good cold insulation effect, low temperature/high temperature, volume stability and high strength surface resistance of pressure resistance

6. Low moisture resistance, good flame retardancy; tubular support elements, factory assembled into a solid monolithic structure, long life

7. Various specifications designed for the needs of various technical levels and economic options


Product Applications

Air conditioning refrigeration plumbing, refrigeration system plumbing, household plumbing, process plumbing and other plumbing.



Technical Information

Product Data Sheet
MaterialClosed-cell polyurethane
Fire Protection FeaturesASTM E84 class A,UL-94 V-0
Sizecan be customized
ColorBlack
Compressive strength2.4N/mm2
Weight capacity300kg/m3
Thermal conductivity0.042W/(m.k)
Thermal radiation impedance coefficient2000μ
Operating temperature-160℃~﹢130℃


Specification Information

Number

Name

Clamp rangespecificationspecificationWidthmaterial width and thicknessLoadPackage
D(mm)D('')DN(mm)L(mm)b*s(mm)F a,z(n)
088 0 015insulation pipe15,0--8840*3036010
088 0 017insulation pipe17,2 0.375108840*3041010
088 0 018insulation pipe18,0--8840*3043010

088 0 021

insulation pipe21,30.5158840*3051010
088 0 022insulation pipe22,0--8840*3053010
088 0 027insulation pipe26,90.75208840*3065010
088 0 028insulation pipe28,0--8840*3067010
088 0 033insulation pipe33,71259540*3081010
088 0 035 insulation pipe35,0--9540*3084010
088 0 042insulation pipe42,41.253210240*301.02010
088 0 048insulation pipe48,31.54010840*301.16010
088 0 054 insulation pipe54,0--11740*301.30010
088 0 057insulation pipe57,0--11740*301.37010
088 0 060insulation pipe60,325012050*301.81010
088 0 076insulation pipe76,12.56513650*302.28010
088 0 089insulation pipe88,938014950*302.67010
088 0 108
