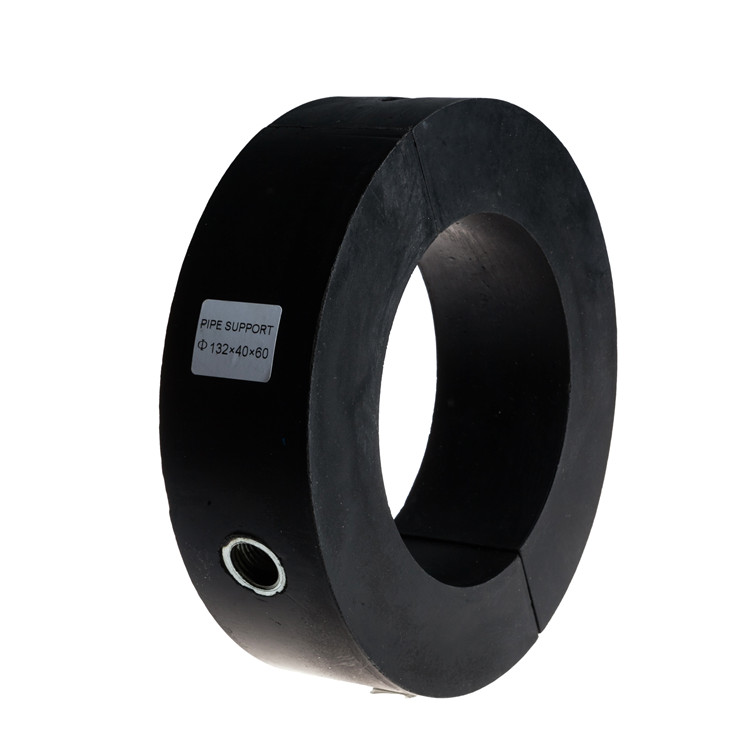

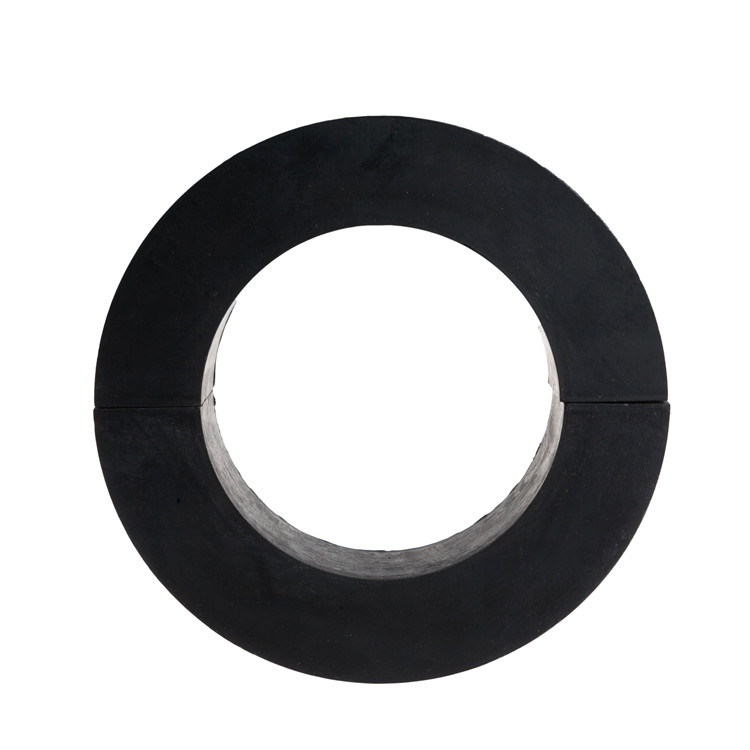

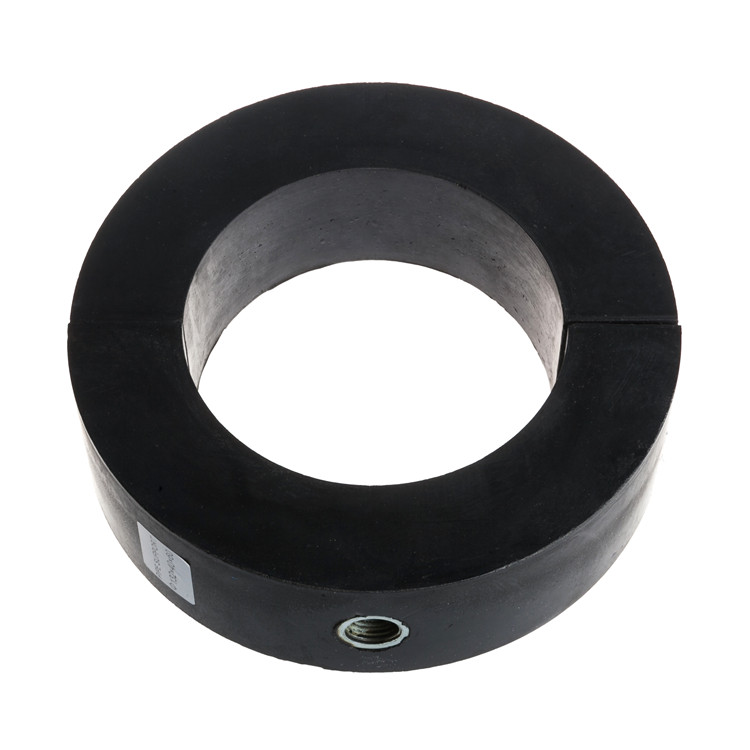

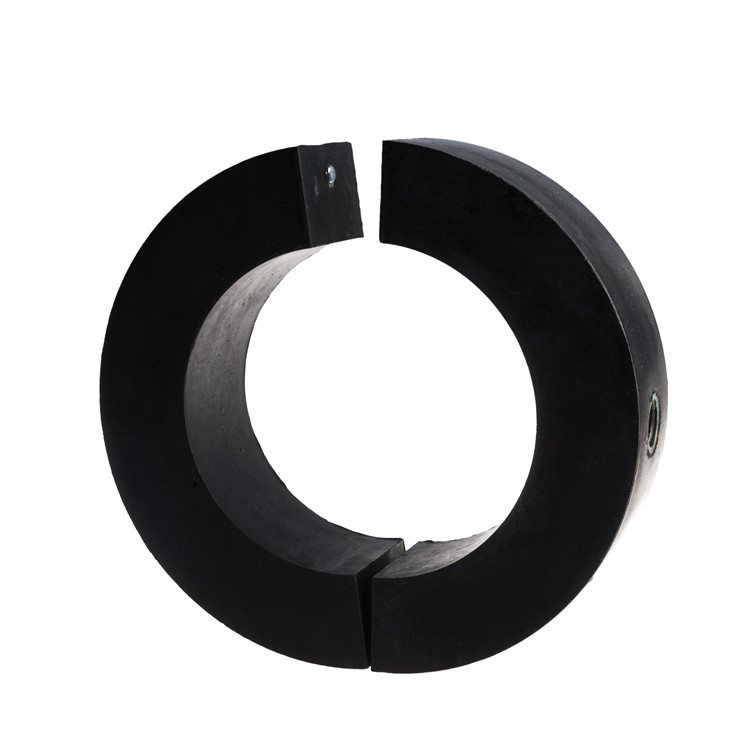

Insulation pipe hanger

Insulation pipe hanger is the connecting piece between the pipe and the steel structure or concrete bracket supporting the pipe, is a foam of bracket.Use professional foam materials as insulation and load-bearing parts, have the functions of fixing And ca

資料下載

Product introduction

Insulation pipe hanger is the connecting piece between the pipe and the steel structure or concrete bracket supporting the pipe, is a foam of bracket.Use professional foam materials as insulation and load-bearing parts, have the functions of fixing And carrying pipes.It plays an important role in ensuring the thermal insulation effect maintaining the system tightness


Product feature

1.Flexible,tough and durable.

2Fast and easy installation.

3.Prevent damage to the pipeline due to condensation during use

4.The fastening bolts have anti-dropping measures, and the built-in hoop has strong bearing capacity.

5.The tube bundle has a smooth surface and is precisely bonded to the pipe surface.

6.Suitable for installation of heavy duty pipe supports up to DIN 200

7.Excellent ozone and ultraviolet ray resistance.

8.Thermal insulation, heat-resistant, waterproof, fire-retardant properties.


Product application

1.Widely used in central air conditioning, construction, chemical industry, medicine, light industry, textile, metallurgy, ships, automobiles, electrical appliances and other lines of cold, hot pipes and containers.

2.Applied to water and cooling pipe of air conditioning system, cooling and heat preservation, the ideal application effect has been achieved.


Product Data Sheet

Material

Closed cavity polyurethane

Size

Custom

Color

Black/gray

Compressive strength

2.4N/mm2

Thermal Conductivity

0.042 W/(m. k)

Density

20-200 kg/m3


Item

Product

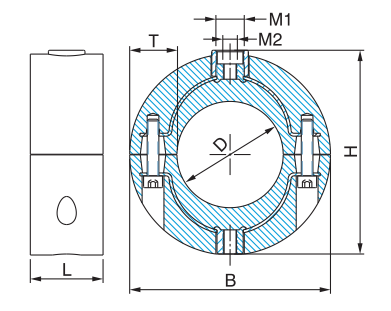

Hoop rangePipe specPipe specTube bundle widthTube bundle material width and thicknessRecommended design loadPacking
D(mm)D('')DN(mm)L(mm)b*s(mm)F a,z(n)
088 0 015Pipe support15,0--8840*3036010
088 0 017Pipe support17,2 0.375108840*3041010
088 0 018Pipe support18,0--8840*3043010

088 0 021

Pipe support21,30.5158840*3051010
088 0 022Pipe support22,0--8840*3053010
088 0 027Pipe support26,90.75208840*3065010
088 0 028Pipe support28,0--8840*3067010
088 0 033Pipe support33,71259540*3081010
088 0 035 Pipe support35,0--9540*3084010
088 0 042Pipe support42,41.253210240*301.02010
088 0 048Pipe support48,31.54010840*301.16010
088 0 054 Pipe support54,0--11740*301.30010
088 0 057Pipe support57,0--11740*301.37010
088 0 060Pipe support60,325012050*301.81010
088 0 076Pipe support76,12.56513650*302.28010
088 0 089Pipe support88,938014950*302.67010
088 0 108Pipe support108,0--18860*403.89010
088 0 114Pipe support114,3410019560*404.1203
088 0 133Pipe support133,0--22060*404.7905
088 0 139Pipe support139,7512522060*405.0305
088 0 159Pipe support159,0--24060*405.7205
088 0 168Pipe support168,36
15025060*406.0605

088 0 219

Pipe support219,18200340100*6013.1505
