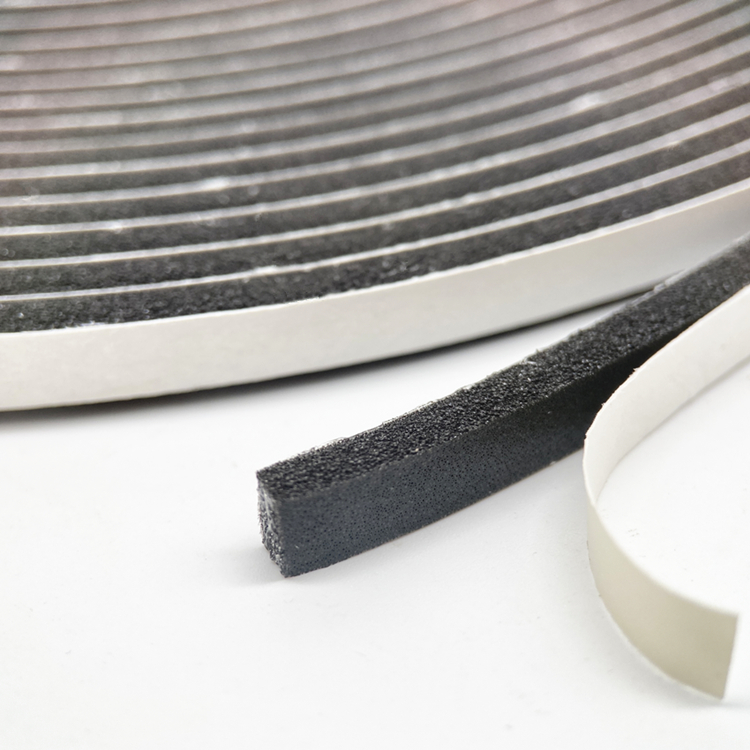

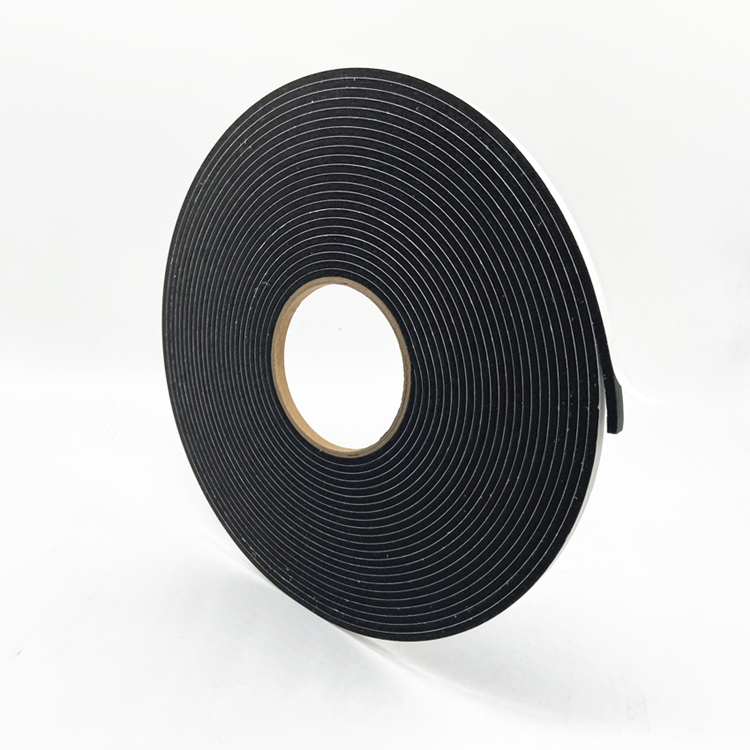

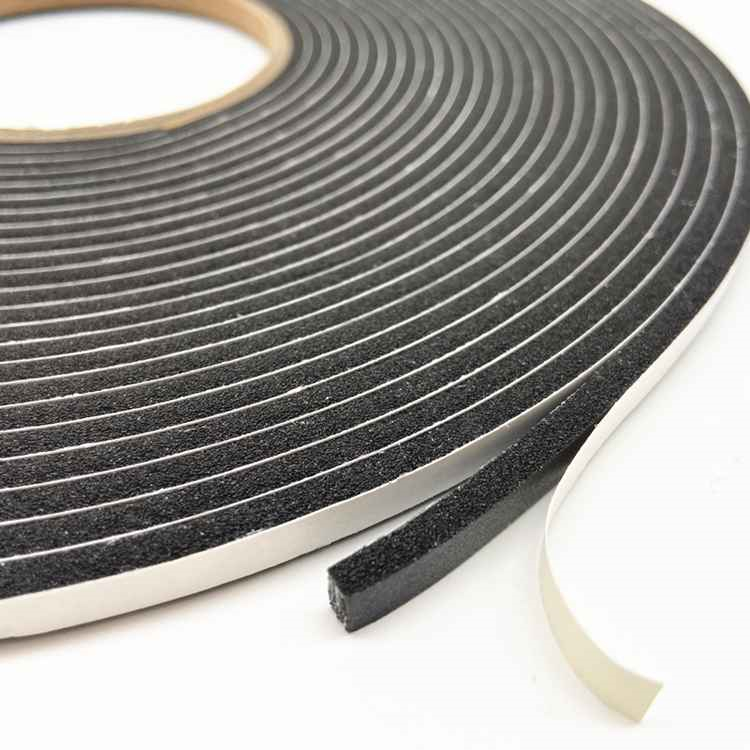

4mm Thick Thermal and Sound Insulation PVC Foam Tape for Electrical Sealing

Hollyseal? low and medium density PVC foam tape is an excellent choice for exterior weatherproof sealing, and it also performs well in sound or vibration damping solutions. Available in double-sided or single-sided tape depending on customer requirements.

資料下載

Product Description

Hollyseal?low and medium density foam is a soft, closed-cell PVC foam that provides excellent sealing against water, dust, light and other substances at various compression levels, and also provides cushioning and shock absorption when structural components are installed. The surface of the foam can be protected with self-adhesive pressure-sensitive adhesive, paper or release film according to the needs of use. In addition, the density (180±20kg/m3), thickness (1-25mm), hardness, and compression rebound of the foam can be adjusted to provide performance for various application scenarios. Suitable for various applications such as automotive sheet metal vibration damping sealing, water tank sealing, HVAC sealing, door and window weather stripping, electrical and electronic vibration damping sealing, power battery sealing and cushioning, die-cutting gaskets, etc. for dustproof, waterproof, vibration damping, cushioning, sound insulation, heat insulation, etc.


Product Structure


Product Features

1. Foam can play an excellent role in sealing water, dust, light and other substances after 30% compression

2. Excellent shock absorption and sound insulation performance

3. Excellent anti-UV performance and weather resistance

4. Good heat insulation performance

5. Good resistance to acid and alkali

6. Wide range of use temperature

7. Flame retardant grade can be customized (UL-94-V-0 class/ BS476:part7:1997 classⅠ)


Product Application

1.Car body vibration damping    2.Door and window roof weather stripping    3.HVAC sealing    4.Electrical sealing    5.Freezer sealing

6.Electronic equipment sealing    7.Mechanical housing sealing    8.Outdoor lighting fixtures

photobank (1).png


Specification Description

Material
Polyvinyl chloride foam
ColorBlack,Grey,White,Brown,Special colors can be customized
Thicknessin0.063,0.079,0.126,0.157,0.189,0.197,0.236,
0.248,0.315,0.374,0.5,0.625,0.75,1
mm    1.6,2,3.2,4,4.8,5,6,6.3,8,9.5,12.7,16,19, 25.4
Lengthft16.4,20,25,32.8,50,100
m5,6.1,7.6,10,15.2,30.5


Technical Information

Density180±20kg/m3
Flame retardantUL-94 V-0
Tensile strength≥350kPa
Elongation at break≥150%
90° Peel strength≥2N/10mm
25% strain compression≥0.2kg/cm2
