3.2mm Thick Double Sided Adhesive Waterproof Compressible PVC Foam Tape

Medium density PVC foam tape is an excellent choice for exterior weather sealing and also performs well in acoustic or vibration damping solutions. Available with adhesive on one side or both sides depending on customer needs. Density: 250±30kg/m3; Thick

資料下載

Product Description

Hollyseal? PVC foam tapes are made of medium rigid closed-cell PVC foam with a density of 250±30 kg/m3 and self-adhesive pressure sensitive adhesive on both sides, which provides excellent sealing of air, water, light and other substances, gap filling and shock absorption for structural component installation at different compression levels. In addition, the density, hardness, and compression rebound of the foam can be adjusted to provide performance in a variety of applications. It is suitable for various applications such as automotive sheet metal damping and sealing, water tank sealing, HVAC sealing, door and window weather stripping, electrical and electronic damping and sealing, power battery sealing and cushioning, die-cutting gaskets, etc. Dustproof, waterproof, damping, cushioning, sound insulation, heat insulation, etc.




The main types of PVC foam we produce, they are:

● Fast recovery foam - material recovers immediately after compression

● Slow recovery PVC foam - ideal for filling irregular surfaces

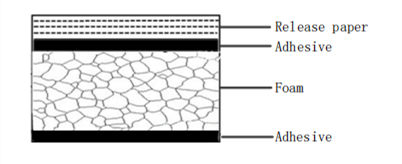

Product Structure



Product Features

●Sealing water, dust and air at 10% compression

●Perfect combination of flexibility, compliance and high strength abrasion resistance

●Excellent UV resistance and weather resistance

Conforms to curves and irregular shapes

Excellent vibration and sound dampening properties

●Customizable flame retardant rating (UL-94 V0; BS476:Part7:1997 Class1)

●Dimensionally stable under compression

●Provides insulating properties


Product Applications

1.Export container sealing

2.Electronic equipment cushioning

3.Ventilation duct sealing

4.HVAC sealing

5.Body shock absorption

6.Electrical appliances sealing

7.Door and window sealing

8.Water tank sealing



Technical Information

Density
250±30kg/m3
Hardness(Shore 00)
55±7°
Compression strength
≥25kPa
 30% permanent compression deformation
≤7%
Elongation at break≥110%
Tensile strength

≥400kPa

                          Flame retardant

UL94 (HBF/HF-1/V-0)

  FMVSS 302

            The above series can be customized

Note: We can provide ultra-low, medium-low and high-density PVC foam tapes.
