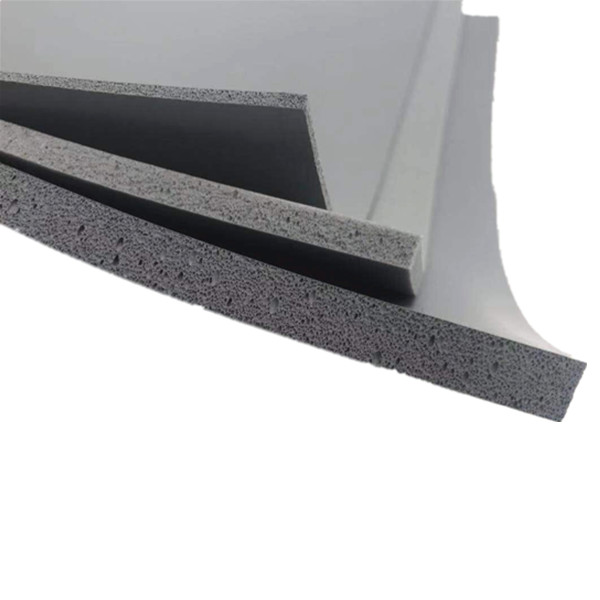

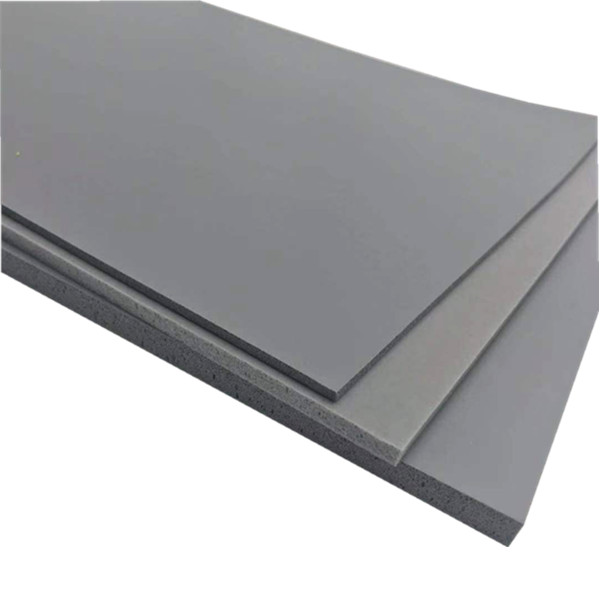

Silicone foam sheet

Silicone foam is introduced into foreign foaming technology, and the foaming is uniform. The density can be 0.4-0.6g/cm3 and the Shore hardness is 5-15A. Environmentally friendly, non-toxic, odorless, good resilience, good flexibility, no bubbles on the s

資料下載

Product introduction

Silicone foam is introduced into foreign foaming technology, and the foaming is uniform. The density can be 0.4-0.6g/cm3 and the Shore hardness is 5-15A. Environmentally friendly, non-toxic, odorless, good resilience, good flexibility, no bubbles on the surface and no pores. Foamed silica foam has high strength, long service life, and high temperature resistance up to 250 °C. Foamed silica gel board is environmentally friendly, resistant to high and low temperatures, resistant to compression, acid and alkali resistant, and resistant to UV rays.


Product feature

1. The product has excellent heat-resistant air aging performance, ozone resistance, insulation, and is resistant to fuel oil and lubricating oil.

    It can work in air or oil medium under the temperature of -60~+250 °C.

2. Strong sealing ability, can effectively prevent tiny particles and rain.

3. Sealed, dustproof, moisture proof, airtight and shading, vibration isolation, fire prevention

4. Use vibration isolation inside electronic equipment and vehicles

5. It can be used to punch all kinds of sealing gaskets and pads with strict requirements.

6. When the water is exposed to moisture or the temperature rises, the change is small. Even if the silicon dioxide generated by the

short-circuit combustion is still an insulator, this ensures that the electrical equipment continues to work, so it is most suitable to make wires,

cables and lead wires.


Product application

1.Printing equipment

2. Electronic appliances

3. Mechanical seal

4. Insulation

5. Decorative materials

6. Cabinet

7. Bathroom

8. Floor

9. Building template

Specification Sheet for:Silicone foam
Material PropertiesUnitTest MethodPhysical standard value
Colour----Black,grey.red
Thicknessmm--<500mm
Widthmm--350
Densitykg/m3ASTM D 1056 TEST D<1(70℃test)
Compression deformation%<5(100℃test)
Tensile StrengthKpaASTM D 412450
Tensile elongation%ASTM D 41295
Flame retardancy
UL94V-0 and HF-1
Flame diffusion indexLsASTM D 162<25
Smoke densityDsASTM E 662<20(15mintest)
<50(4mintest)
Toxic gas emission rating--SMC-SOOPass
Water absorption rate--Internal Test 24Hrs3.80%
Dielectric constant--ASTM D 1501.37
Dielectric strengthKV mmASTM D 1493.96
Arc resistance--ASTM D 49592
Physical resistivityohm cmASTM D 25710
Thermal conductivity--ASTM D 5180.09
-55 Celsius low temperature distortion--ASTM D 1056 Pass
Recommended temperatureSAE J 2236-55~200
Recommended intermittent use temperatureInternal 250
