Hollyseal?Low Density Super Soft PVC Foam for Car Mirror Seal

Hollyseal? PVC foam is a closed-cell polyvinyl chloride foam designed to provide an economical solution for sealing light, air and moisture. It can provide performance that meets various application scenarios by adjusting the density,hardness,thickness an

資料下載

Product introduction

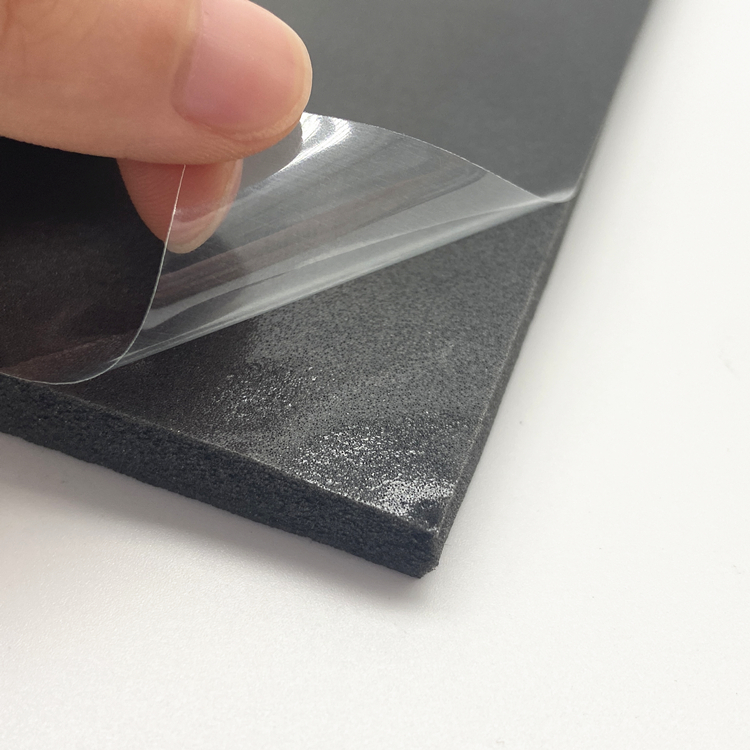

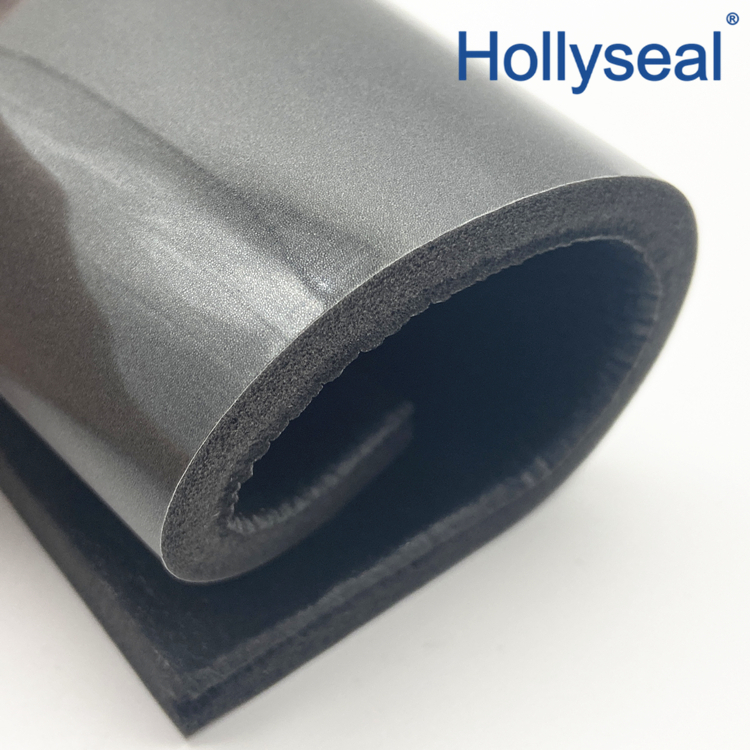

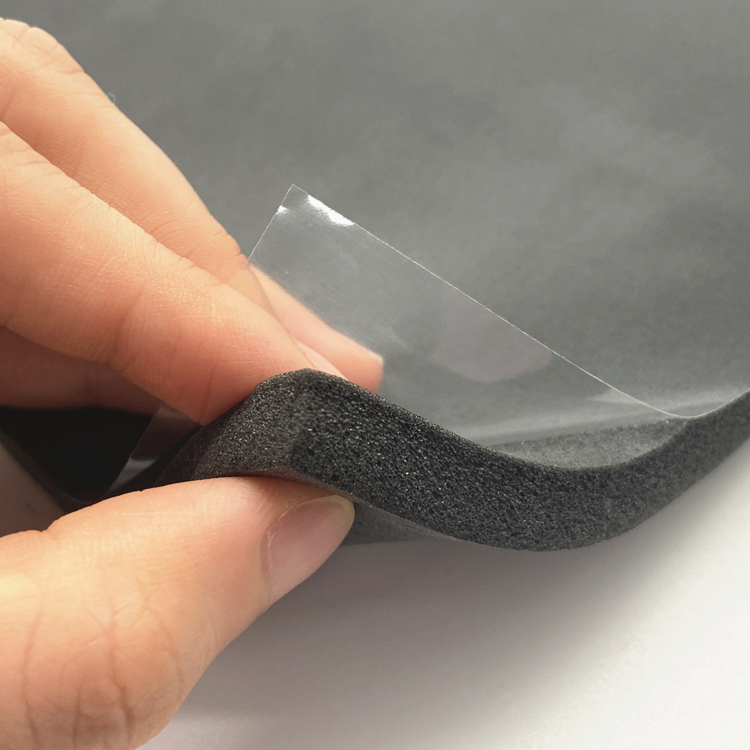

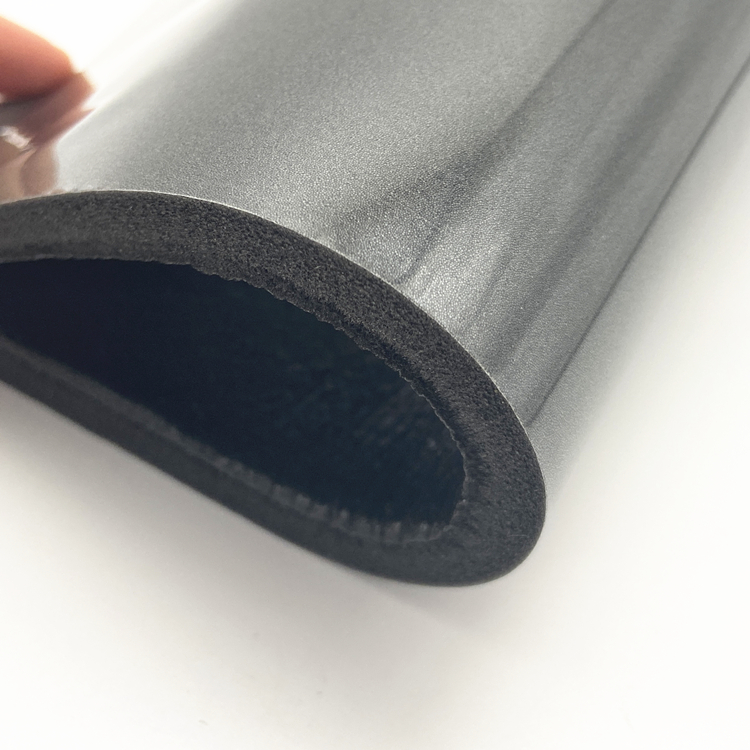

Hollyseal? PVC foam is a closed-cell polyvinyl chloride foam designed to provide an economical solution for sealing light, air and moisture. It can provide performance that meets various application scenarios by adjusting the density,hardness,thickness and resilience of the foam. It is very suitable for various applications such as body damping,door and window sealing, water tank sealing, HVAC sealing, and electronic product cushioning application.


We manufacture finished goods in main types of PVC foam, which are:

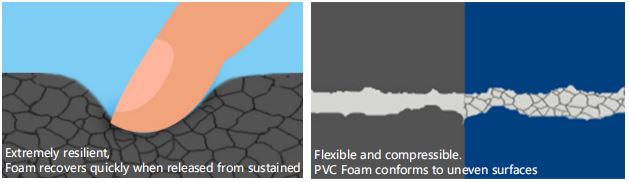

●Quick recovery foams – where the material immediately recovers after compression
●Slow recovery PVC foams – ideal for filling irregular surfaces


Product feature

●30% compression provides an excellent seal against light, dust and water

●Conforms to curved and irregular shapes

●Good recovery after compression

●Good vibration dampening and cushioning

●Resistant to weather, UV rays and chemical

●Thicknesses from 0.5 mm up to 25 mm

●Passes FMVSS 302

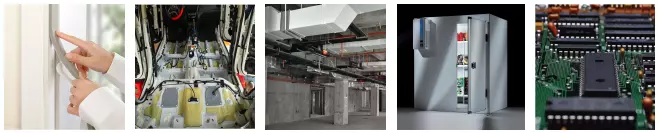

Product application

● Access doors & HVAC seals

● Appliance seals

● Die-cut gaskets

● Cold room seals

● Window and door weatherstripping

● Electronic equipment

● Engine hatch covers

● Automotive application



Technical information

Density95±10 kg/m3
Tensile Strength≥120 kPa
30% Compression Set≤6%
    Hardness(Shore 00)8±5°
Elongation ≥190%
Flammability

 UL94 HF-1/HBF

  FMVSS 302

      (V-0 can be customized)


Specification

MaterialPVC foam
ColorBlack,Grey,White,Brown,Special colors can be customized
Thicknessin0.063,0.079,0.126,0.157,0.189,0.197,0.236,
0.248,0.315,0.374,0.5,0.625,0.75,1
mm1.6,2,3.2,4,4.8,5,6,6.3,8,9.5,12.7,16,19,25.4
Lengthft16.4,20,25,32.8,50,100
m5,6.1,7.6,10,15.2,30.5
Width dimension(mm)1020,1220,1350,1422,Specialcan be customized
