9.5mm Thick High Density Residential Glass Window Weather Resistant PVC Foam

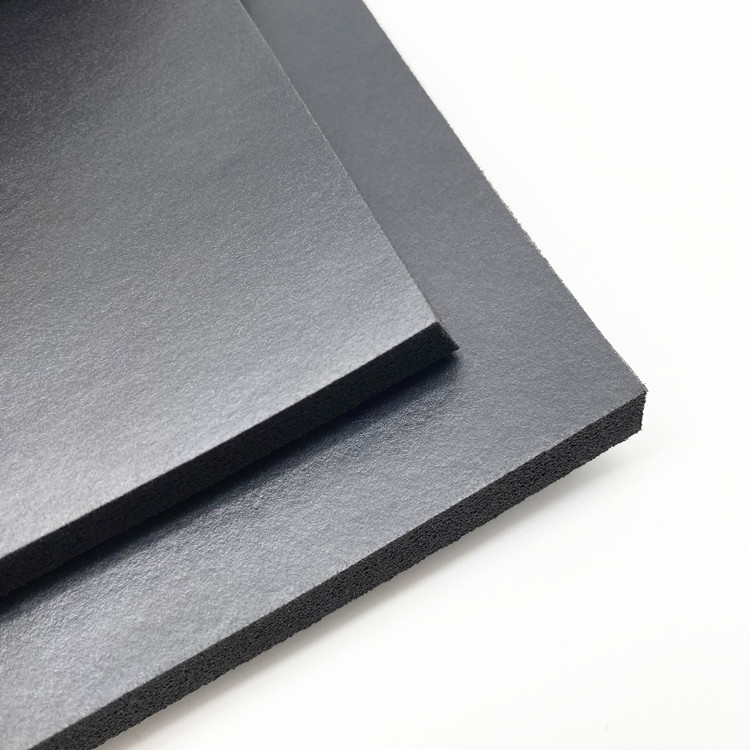

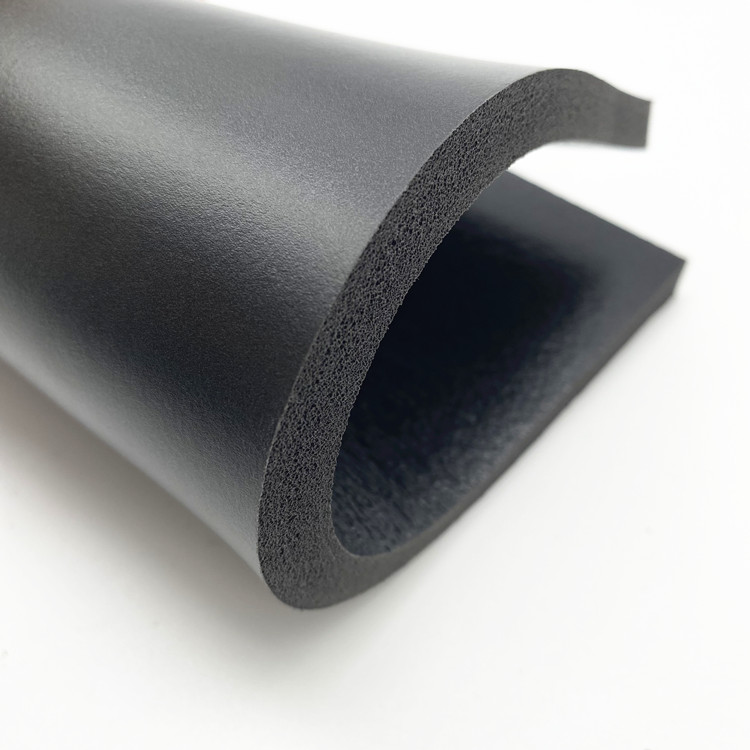

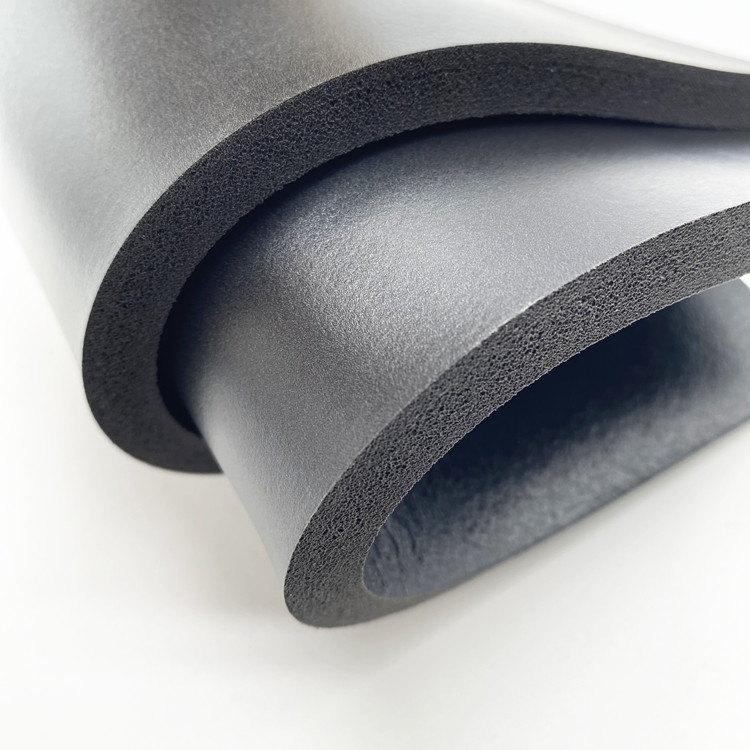

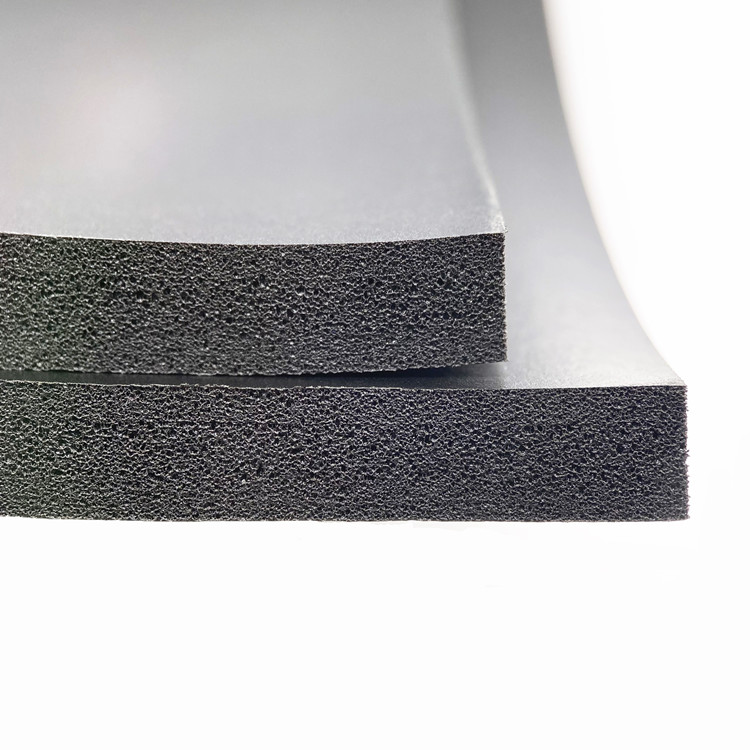

Hollyseal? closed cell PVC foam sheet is a high density, high hardness foam material made of PVC plastic as the main raw material. The surface is crusty, the appearance is flat and smooth, and the structure of the bubble pore is relatively fine. Its high-

資料下載

Product Description

Hollyseal?High density foam is a soft, closed-cell PVC foam that provides excellent sealing against water, dust, light and other substances at various compression levels, and also provides cushioning and shock absorption when structural components are installed. The surface of the foam can be protected with self-adhesive pressure-sensitive adhesive, paper or release film according to the needs of use. In addition, the density (350±50kg/m3), thickness (0.8-16mm), hardness, and compression rebound of the foam can be adjusted to provide performance for various application scenarios. Suitable for various applications such as automotive sheet metal vibration damping sealing, water tank sealing, HVAC sealing, door and window weather stripping, electrical and electronic vibration damping sealing, power battery sealing and cushioning, die-cutting gaskets, etc. for dustproof, waterproof, vibration damping, cushioning, sound insulation, heat insulation, etc.


The main types of PVC foam we produce, they are.

● Fast recovery foam - material recovers immediately after compression

● Slow recovery PVC foam - ideal for filling irregular surfaces


Product Features

●Excellent vibration and sound damping performance

●Good compression rebound and adhesion

●Highly conformable to curves and irregular shapes

●Excellent UV resistance and weather resistance

●Sealing water, dust and air can be achieved at 30% compression

●Release paper on non-adhesive surface reduces dimensional changes during application

●Flame retardant rating can be customized (UL94 V-0; BS476:Part7:1997 Class1)


Product Application

1.Door and window roof weather stripping

2.Car body shock absorption

3.HVAC sealing

4.Electrical sealing

5.Refrigerator sealing

6.Electronic equipment sealing

7.Mechanical housing sealing

8.Outdoor lighting fixtures

photobank (1).png


Technical Information

Density350±50 kg/m3
Tensile strength≥800kPa
30% permanent compression deformation≤15%
    Hardness(Shore 00)70±10°
Elongation at break≥70%
Flame retardant

 UL94 (HBF/HF-1/V-0 )

FMVSS 302

The above series can be customized


Note: We can provide ultra-low, medium-low and high-density PVC foam.
